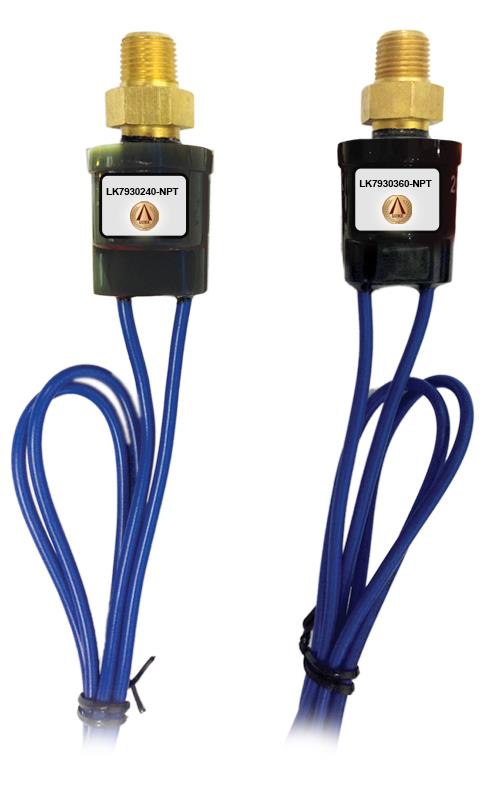

Pressure Supervisory Switch is operated by supervised fluid pressure applied within the cylinder.
This switch offers a choice of pressure monitoring alarms.
When the set point pressure is detected, the switch works to open or close a circuit.
This allows for enhanced alarm and control which in turn improves the dependability and safety of the workplace.
Technical Details
Manufacturer: Luke Alexander , USA
Configuration : Pressure Switch N/C
Open : 500 +/- 20 psig
Close : 500 +/- 20 psig
Connection Thread : 1/8” NPTFEATURES Built Tough and feld proven Excellent corrosion resistance Simple installation High Cycle rate of tolerance SPECIFICATION
Auto Reset Pressure Switch
Proof Pressure: 600 psig
Burst Pressure: 5000 psig
Electrical Ratings:
-120/240 VAC - 375 VA
-24 VAC - 125 VA
Cycle Life: 100,000 Minimum
Ambient Temperature: -30ºC to +70ºC
Fluid Temperature: -54ºC to +135ºC
Valve Approvals : UL
Documents and Resources
Technical Data Sheets
