Viking - VK464 - Mirage® Quick Response Concealed Pendent Sprinkler (K8.0)

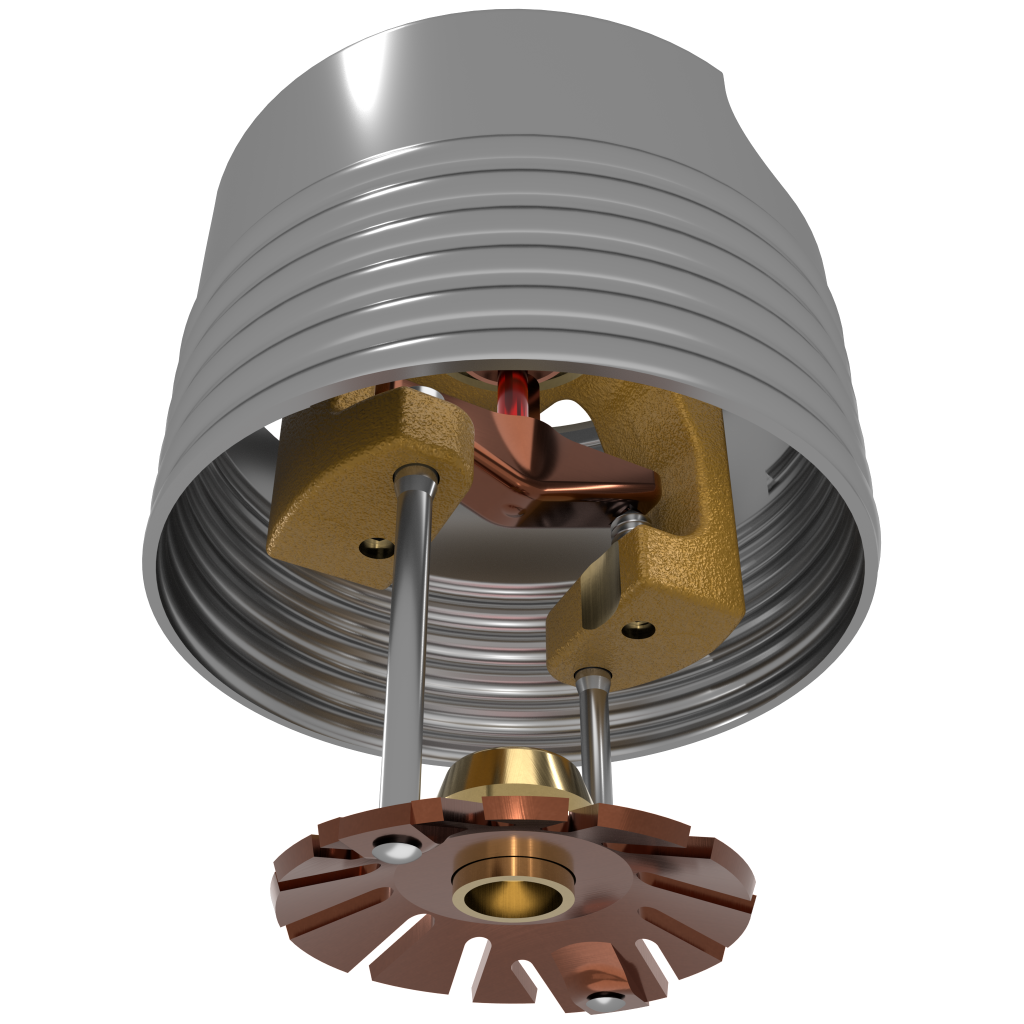

Viking Mirage® Quick Response Concealed Pendent Sprinkler SIN VK464 is a thermosensitive glass-bulb spray sprinkler designed for installation on concealed pipe systems where the appearance of a smooth ceiling is desired.

Technical Details

K Factor: 8.0
Manufacturer: Viking
Page: F_021606
Part Number: 13614A, 13504, 13642, 15394
VK Number: VK464
Additional Information:
NOTICE: The product details indicated below are for general reference only and may vary based on the specific product approval and/or application. Always verify product details with the technical data sheet and consult with the Authority Having Jurisdiction (AHJ).
Max Pressure: 175 psi (12 bar)
Response Type: Quick
Occupancy Type: Light Hazard, Ordinary Hazard
Thread Size: 3/4" NPT (20 mm BSP)
Min Spacing: Per Standards / Listings
Max Spacing: Per Standards / Listings

Documents and Resources

Technical Data Sheets

Technical Data Sheet

Drawings

•  Figure 2
•  Figure 3

Revit® Files

•  Viking - Standard Spray - Quick Response - Pendent_Revit2017
•  Viking - Standard Spray - Quick Response - VK464_Revit2017

Approval Certificates

•  NYC Dept. of Buildings
•  Underwriters Laboratories
