After a system discharge, no reconditioning of the constant flow and pressure discharge regulator is necessary.
Functional tests are possible even while the system is armed.
Technical Details
Manufacturer: Rotarex (Luxembourg)
Inlet connection: W21.8 x 1⁄14” DIN 477
Outlet connection : W21.8 x 1⁄14” DIN 477
Nominal inlet pressure : 200/300 bar
Maximum inlet pressure : 360 bar
Inlet orifice size : 12 mm.
Static outlet pressure : 60 bar

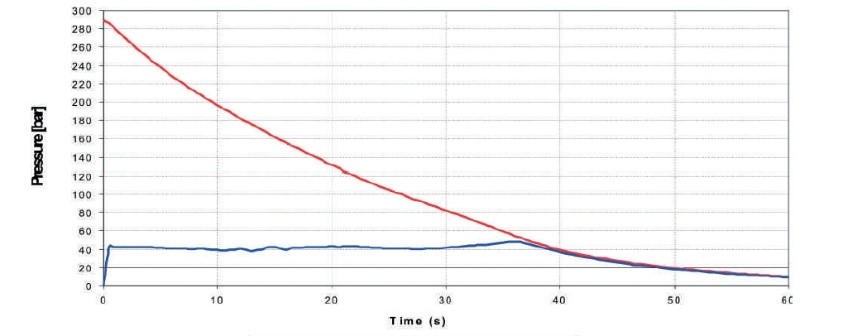

Dynamic outlet pressure : see chart below
Material : Brass
Approval : UL
Documents and Resources
Technical Data Sheets
