FEATURES
- Complete unit responsibility.
- Complete in-house fabrication capabilities.
- Hydrostatic strength testing facilities.
- Operation run test as per NFPA 20, UL 448 requirements.

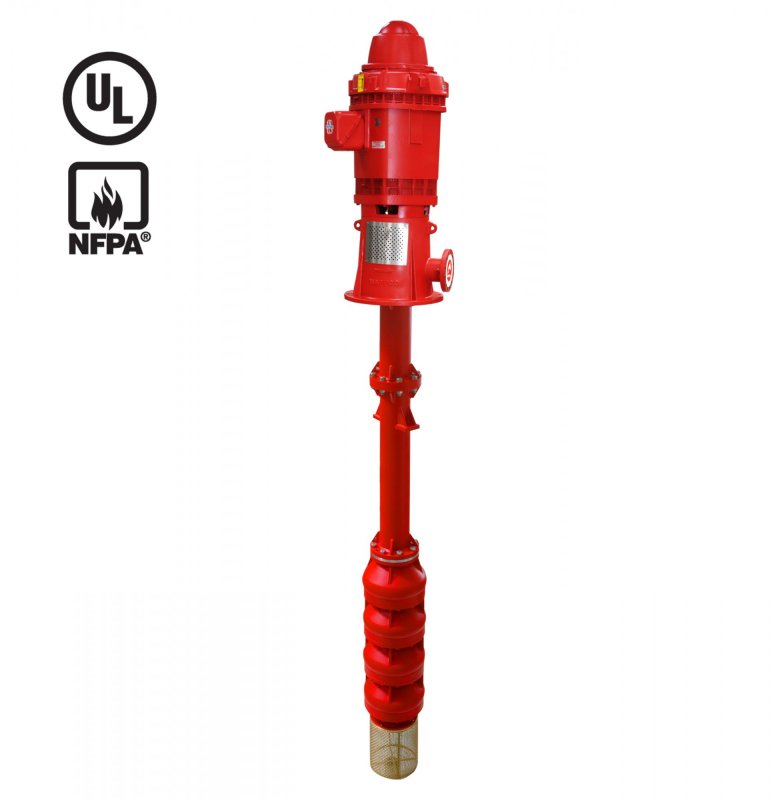

- Vertical turbine models for capacities from 50 to 2000 US GPM.
- Drivers: Electric motor drive or diesel engine drive.
- Electrical testing capabilities for motors and controllers as per NFPA standards.
- Capable to supply additional accessories wherever required.
- Rugged construction for longer service life.
- Specifically designed for fire fighting applications as per NFPA 20.
- Excellent mechanical and hydraulic design characteristics for efficient performance.
Technical Details
Manufacturer: Naffco
SUCTION ASSEMBLY: Suction bell is furnished with an extra long bearing that strengthens and provides rigid support for the lower end of the pump shaft. Suction bell provides efficient flow into the eye of the first stage impeller.
DISCHARGE HEAD: The rugged pump discharge head assembly is made of close-grained cast iron. It has smooth passageways that ensures efficient overall operation and provides an above ground connection to the discharge piping.
BOWL: The pump bowls have vanes cast integrally in them. These Vanes are designed to match accurately with the impeller, and are smoothly contoured to guide the flow to next stage with maximum efficiency.
SHAFT SEAL: Soft-packed stuffing box. Cooling lines are provided for additional cooling of the graphite impregnated type gland packing.
PUMP MODEL NAME ILLUSTRATION: Ex : NF-S-150-100
NF → Series Name
S → Split Case
150 → Suction Size (mm)
100 → Discharge Size (mm)
APPROVAL: UL list
Documents and Resources
Technical Data Sheets
