Naffco - Manual Release

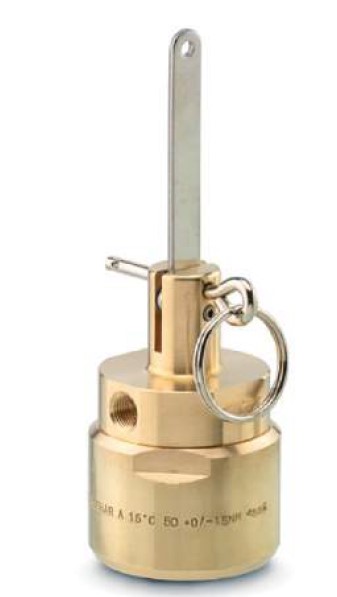

The manual/pneumatic release device allows manual or pneumatic actuation of several system components.

This release device is used for pneumatic actuation of multiple cylinders in series, which are connected to the master cylinder by a pilot hose.

Manual actuation is accomplished by pulling the hand lever on the manual/pneumatic release device.

In the closed position the manual/pneumatic release device is secured with a safety pin.

By removing the safety pin, the hand lever can be manually pressed down to activate the valve so that inert gas is released.

Technical Details

Manufacturer: Naffco (United Arab Emirates, UAE)

Valve connection : M42 x 1.5

Working Pressure : 300bar

Pneumatic connection : G¹⁄₈ ”

Material : Brass and stainless steel

Actuation Force : <150N

Acutation pressure :

• 200 Bar System: P Min = 15 Bar; P Max = 240 Bar
• 300 Bar System: P Min = 21 Bar; P Max = 360 Bar

Approvals : UL Listed.

Documents and Resources

Technical Data Sheets

•  Technical Data Sheet 1

•  Technical Data Sheet 2
