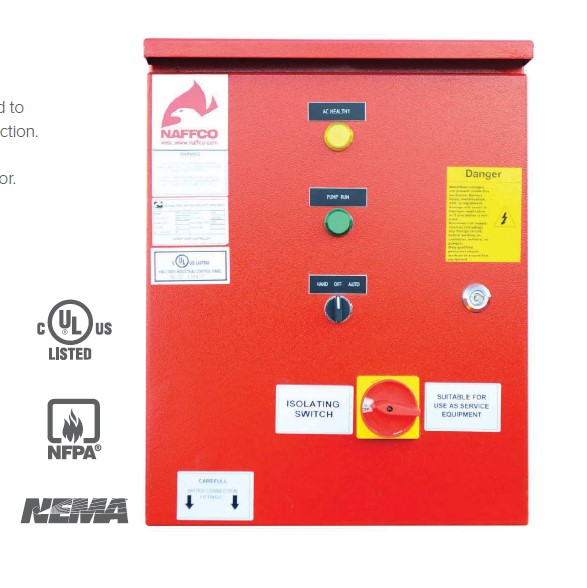

NAFFCO Jockey Pump Controllers are listed by Underwriters Laboratories (UL file number E309408), in accordance with UL 508A (Standard for Industrial Control Panel), NFPA 70 (National Electric Code) and NEMA Standards.
Power ratings vary from 1.5 to 40 horsepower, 380 to 415 volts, 50 or 60 Hz.
Only high quality UL listed or UL recognized components are used in these panels to guarantee the best possible reliability. Also high quality UL listed enclosures are used.
The controller is completely wired, assembled and tested at the factory before shipment, and ready for immediate installation.
Technical Details
Manufacturer: Naffco
Power Rating: 380 - 415 voltage rating at 50/60 Hz
POWER: 1.5 – 40 HP
ENCLOSURE OPTIONS: NEMA 2, 3, 4, 12
Standard Features:
- Main disconnect switch with rotary handle, sized for disconnecting motor horsepower and voltage.
- Motor Starter (DOL) or Over Load Relay (Star-Delta) rated to motor horsepower, with thermal and short circuit protection.
- Rated motor connectors.
- Circuit breaker for protection of control circuit and motor.
- Selector switch for Hand—Off—Automatic operation.
- Star—Delta starting timer. (in Model NFY-JSD1 )
- Power ON/Healthy indicator/free contact.
- Pump Run indicator/free contact.
- Pump Trip indicator/free contact.
- Adjustable pressure switch.
- Run Period Timer
Approved: UL Listed, NEMA
Documents and Resources
Technical Data Sheets
