FEATURES
- Performance characteristics as per NFPA 20
- Complete unit responsibility.
- Complete in-house fabrication capabilities.
- Hydrostatic testing facilities.
- Operation run test as per NFPA 20, UL 448 and
- FM 1311 requirements.

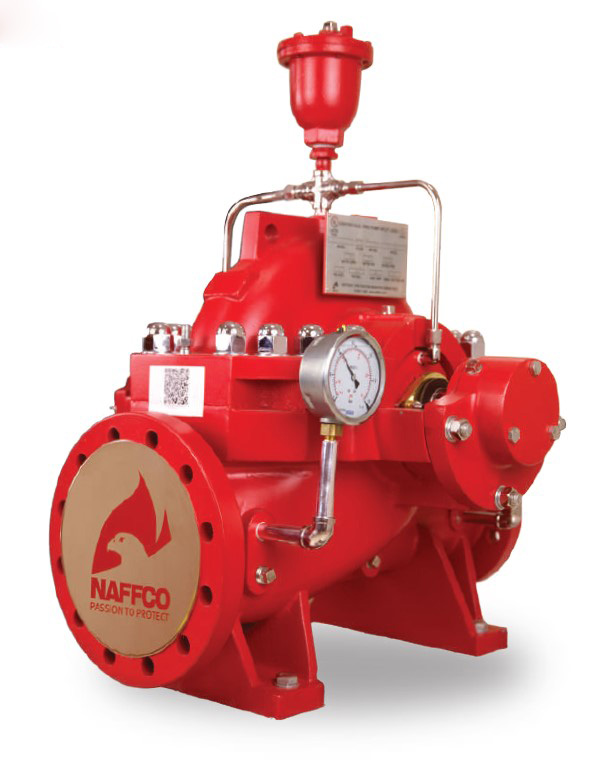

- Horizontal Split case pumps for capacities from 750 to and 500 US GPM
- Drivers: Electric motor drive or diesel engine drive.
- Electrical testing capabilities for motors and controllers connected to pump as per NFPA standards.
- Capable to supply additional accessories wherever required
Technical Details
Manufacturer: Naffco
PUMP CASING: The casing is axially split, which permits removal of the complete rotor without moving either piping or driver. Pumps generating high heads have double volutes to reduce radial forces, ensuring minimal shaft deflection and low bearing loads. Replaceable wear rings protect the casing at the impeller running clearances.
IMPELLER: The closed impeller ha double curved vanes. The double suction design gives practically zero axial forces. Each impeller is dynamically balanced according to ISO 1940-1 standard.
BEARINGS: Grease lubricated deep groove ball bearings are provided on both sides.
SHAFT SEAL: Soft-packed stuffing box. Cooling lines are provided for additional cooling of the graphite impregnated type gland packing.
PUMP MODEL NAME ILLUSTRATION: Ex : NF-S-150-100
NF → Series Name
S → Split Case
150 → Suction Size (mm)
100 → Discharge Size (mm)
APPROVAL: UL list & FM Approved
Documents and Resources
Technical Data Sheets
