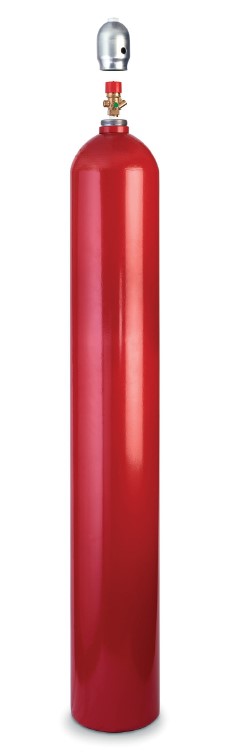

Cylinders shall be High Pressure Seamless Cylinder available in different capacities (i.e. 67, 80 & 140 Ltrs).
The Cylinder filling pressure shall be either 200 Bar or 300 Bar to meet suitable system requirement.
Cylinders arrives with valves preassembled.
Cylinders shall be High Pressure Seamless Cylinder available in different capacities (i.e. 67, 80 & 140 Ltrs).
The Cylinder filling pressure shall be either 200 Bar or 300 Bar to meet suitable system requirement.
Cylinders arrives with valves preassembled.
Technical Details
Manufacturer: Naffco (United Arab Emirates, UAE)
Material : 34CrMO4 EN 10 083
Water Volume : 67 litres,80 litres,140 litres
Working Pressure: 200/300 bar
Length with valve :
- 1470 mm.(200bar-67L.)
- 1526 mm.(300bar-67L.)
- 1710 mm.(200bar-80L.)
- 1780 mm.(300bar-80L.)
- 1690 mm.(200bar-140L.)
- 1760 mm.(300bar-140L.)
Diameter :
- 267 mm.(200bar-67L,300bar-67L.)
- 267 mm.(200bar-80L,300bar-80L.)
- 360 mm.(200bar-140L,300bar-140L.)
Gas to be filled : IG100, IG541
Approvals : UL Listed
Documents and Resources
Technical Data Sheets
