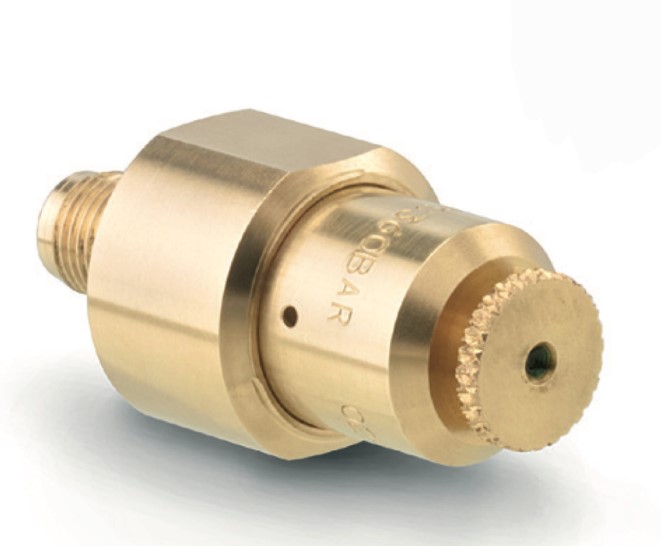

Naffco - Bleed Valve

The bleed valve is a part of the pilot line. The device must be mounted at the end of each pilot line at the last pneumatic release device.

This device is a security part, which protects the system from unwanted tripping when a cylinder has a leak and the pressure would increase in the pilot line.

It allows a bleeding till the pressure in the pilot line is under 0.7 Bar.

The bleed valve prevents an accidental system release.

Technical Details

Manufacturer: Naffco (United Arab Emirates, UAE)

Connection thread inlet : G¹⁄₈” DIN ISO 228-1

Working Pressure : 300 bar

Closing pressure : 0.7-1.5 bar

Material : Brass

Approvals : UL Listed.

Documents and Resources

Technical Data Sheets

•  Technical Data Sheet 1

•  Technical Data Sheet 2
