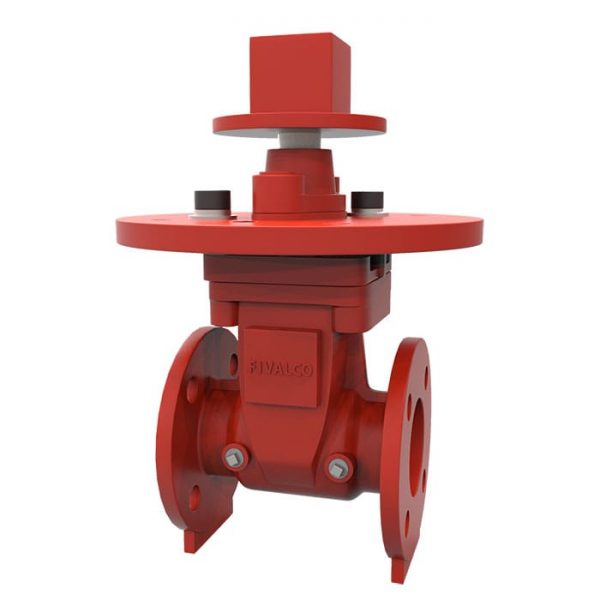

300PSI Fig No.: 3288-Ll-300-FLA
FEATURES & SPECIFICATIONS
- Valve Standards:
Conforms to AWWA C515/BS5163 - Working Pressure:
21BARS / 300PSI
Temperature: from -10°C to 120°C
Fusion bonded epoxy coated interior and exterior RAL3002 - Flanged Ends:
ANSI B16.1 Class 125/ANSI B16.5 Class 150, EN1092-2 PN16
BS10 TableD /TableE - Stainless Steel Stem
Technical Details
BRAND : FIVALCO
MANUFACTURER : FIVALCO INC.
MODEL : 3288-LI-300-FLA
TYPE : VNON-RISING STEM
APPROVED : UL/FM
SIZE : 2 ½”, 3”, 4”, 6”, 8”, 10”,12”
CONNECTION : FLANGED ENDS
PRESSURE : 300 PSI. WKP.
MATERIAL LIST
BODY&BONNET : DUCTILE IRON
WEDGE : DUCTILE IRON W / EPDM COATED
STEM : STAINLESS STEEL
