DESCRIPTION
The Buckeye Model FAM - PO Ratio Flow Controller is a proportioning device designed to meter the correct amount of foam concentrate into the water stream over a wide range of flows and pressures. These units are used in conjunction with either a bladder tank or a foam pump proportioning system.
The operating principle of the controller is based upon the use of a modified venturi. As the water passes through the inlet jet, a reduction in pressure in the annular area is created. This reduction allows the metering of the foam concentrate into the water stream
FEATURES
- U.L. Listed.
- Proportioner body and inlet nozzle are cast in ASTM 85-5-5-5 brass. Machine faced to ANSI B16.1 class 12.5.
- The 2 1/2" threaded controller is designed using a 2 1/2" FNPT threaded inlet and a 2 1/2" male NPT threaded outlet. All 3",4", 6" and 8" wafer style ratio controllers are designed to fit between two 150 lb. flat faced pipe flanges. To ensure a complete seal against each flange, each face of the controller is machined with 32 grooves per inch.
- The controller body is clearly marked with a flow direction arrow and label to identify the type of foam concentrate and percentage ratio.
Technical Details
ยี่ห้อ :
BUCKEYE
FLOW RANGE :
The following table lists the nominal flow range for each size ratio controller. The flow rates may vary when using other foam concentrates. Consult the Buckeye Engineering Department for specific applications.

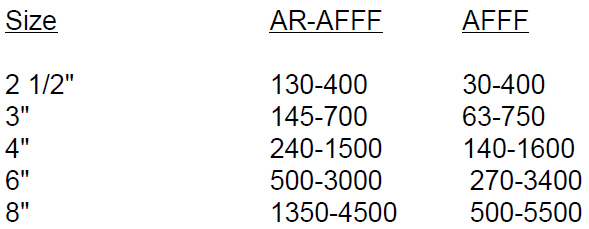

BLADDER TANK FLOW RANGES :

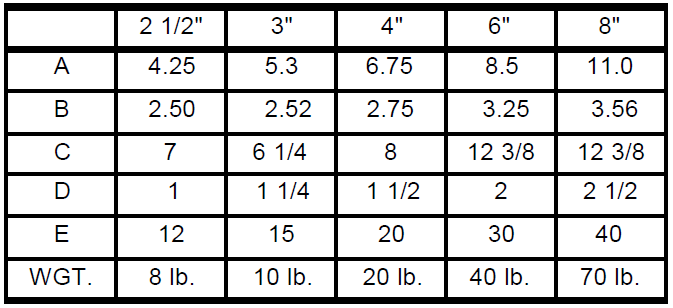

PROPORTIONER DIMENSIONS (INCHES) :
