ระบบเครื่องสูบน้ำยาโฟม (Foam Pump Skid)
DESCRIPTION
The Buckeye In-Line Balanced Pressure Proportioners (ILBPs) are used with positive displacement foam concentrate pumps and atmospheric foam concentrate storage tanks. The Buckeye ILBP is designed to meter the correct proportion of foam concentrate into the water stream over a wide range of flows and pressures.
These units are suitable for use with all types of foam concentrates.
The ILBP is a completely self contained device
containing all necessary components including the ratio controller, pressure balancing diaphragm valve, duplex gauge, check valve and manual ball valve. Balancing is achieved through two sensing lines, one from the water supply, the other from the foam concentrate line. Both lines connect to the diaphragm valve. This valve automatically adjusts the foam concentrate pressure to correspond to the water pressure. The foam concentrate is then metered through a fixed orifice into the water stream.
FEATURES
- U.L. Listed.
- 2 1/2" Proportioning controller - threaded style. 3", 4", 6", & 8" proportioning controller - between flange style.
- Diaphragm valve ensures accurate proportioning over a wide flow range.
- Compatible with all Buckeye foam concentrates.
- All brass construction with stainless steel sensing lines.
- Five sizes available to cover a wide range of flows.
Technical Details
ยี่ห้อ :
BUCKEYE

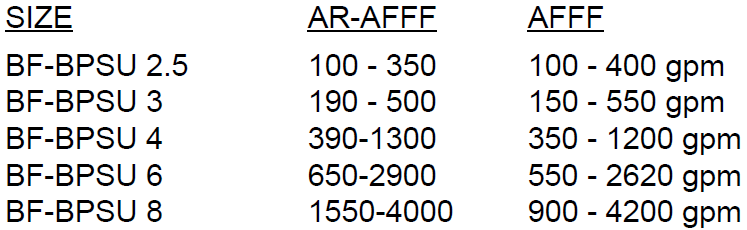

FLOW RANGE :
The following table lists the nominal flow range for each size ILBP unit. The flow rates for other foam concentrates may vary. Consult the engineering department at Buckeye for specific applications.

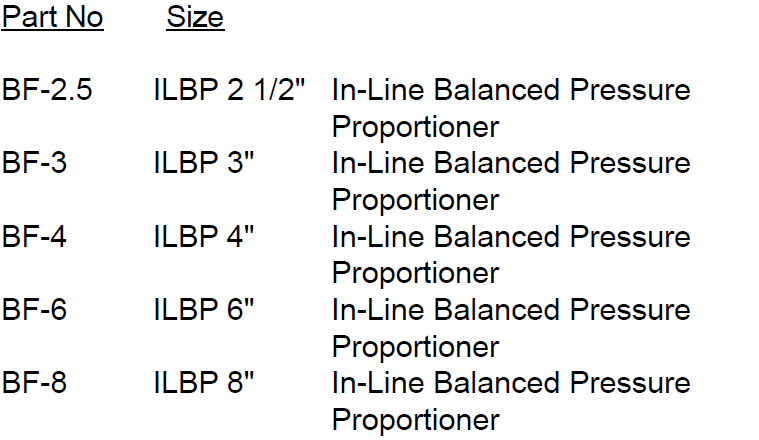

ORDERING INFORMATION :
Documents and Resources
File :
สนใจผลิตภัณฑ์ติดต่อ :
บริษัท อิมพีเรียลไฟร์เอ็นจิเนียริ่ง จำกัด
เบอร์ : 02-319-6000
