ระบบถังบรรจุน้ำยาโฟมแบบ Bladder Tank
DESCRIPTION
WARNING!
THE ACTUATOR IS PROVIDED WITH A WATER INLET SHUT-OFF VALVE TO FACILITATE THE RESETTING OF THE VALVE AFTER ACTUATION. ENSURE THAT THIS VALVE IS LEFT OPEN WHEN SYSTEM IS PLACED INTO SERVICE. FAILURE OF THE SYSTEM COULD RESULT IF THE VALVE IS LEFT CLOSED.
The standard hydraulic concentrate control valve
assembly consists of a factory assembled and tested
quarter turn full port ball valve to which a hydraulic
actuator has been attached. The ball valve has a bronze body with 316 stainless steel ball and stem.
Valve seats are glass reinforced bronze. Inlet and outlet threads are female NPT. All valves are rated 600 psig WOG. Stainless steel flanged valves are rated in excess of 1,000 psig WOG.
The hydraulic actuator is mounted directly to the ball valve using a mounting bracket. The housing of the actuator has a corrosion resistant exterior with a two-part epoxy coating providing extra protection against aggressive environments. The interior components have "Ceramiguard", a unique finish of Di-Aluminum Tri-Oxide; a hard ceramic like surface, protecting all body parts against wear and corrosion. The actuator has two way rotational travel stops,
providing a minimum of 96°and positive, adjustable
rotation stopping (10°at each end.) This combination
assures positive sealing, correct port alignment for long valve life and maximum foam concentrate flow
through the ball valve. The hydraulic actuator is

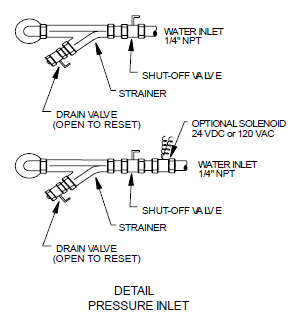

equipped with a visual valve position indicator and has the capability for manual override using a free handle, secured to the valve body with a length of chain. Water to drive the valve open is fed to the hydraulic actuator through 1/4 inch or 3/8 inch pipe or copper tubing. A connection from the sprinkler system is usually made from a normally un-pressurized port, such as the water motor alarm line on the alarm or deluge valve to power the hydraulic actuator. The water inlet to the hydraulic actuator will be provided with a 'Y' strainer and shut-off valve to allow depressurizing and resetting of the valve after use. In the event electric operation is needed, a solenoid release is installed in the water supply line to the actuator which will allow water to flow into the actuator and open the valve.
Technical Details
ยี่ห้อ :
BUCKEYE

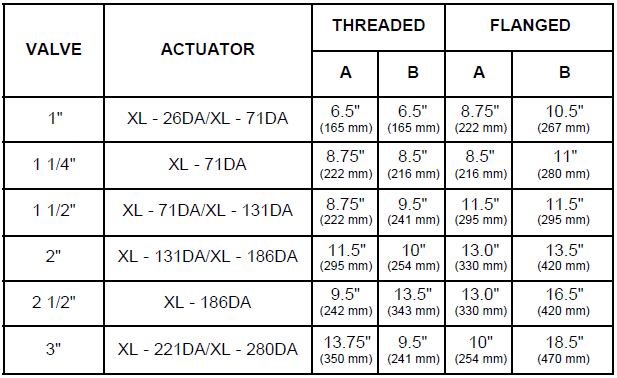

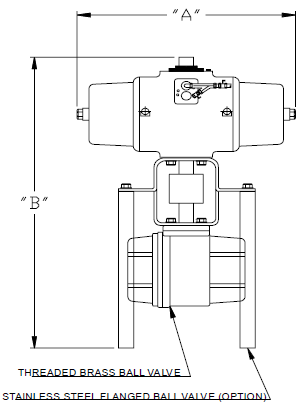

DIMENSIONS :
Documents and Resources
File :
- HYDRAULICALLY ACTUATED VALVE
- CONFIGURATION OF HYDRAULICALLY ACTUATED VALVE DELUGE SYSTEMS
- CONFIGURATION OF HYDRAULICALLY ACTUATED VALVE - CLOSED HEAD FOAM/WATER SPRINKLER SYSTEM
