ระบบเครื่องสูบน้ำยาโฟม (Foam Pump Skid)
SPECIFICATIONS

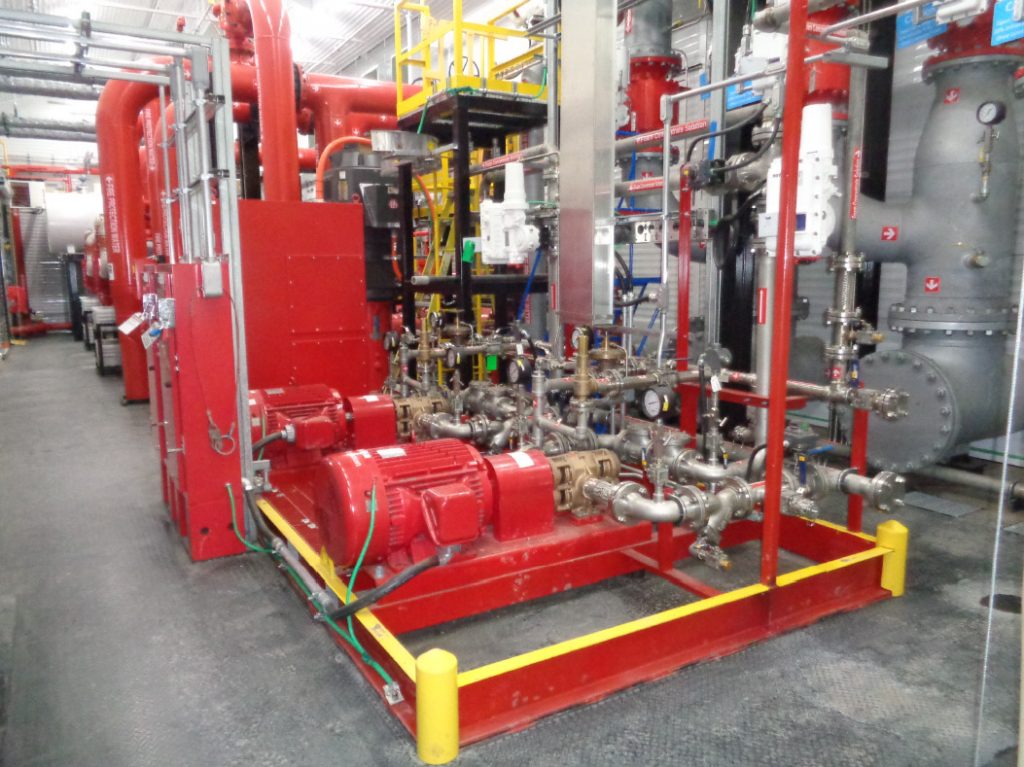

The Buckeye Balanced Pressure Proportioning Skid
contains all necessary components including control
valves, proportioning controller(s), duplex gauge,
positive displacement foam concentrate pump with
electric motor, motor starter and all interconnecting
piping. The complete unit is mounted on a structural
steel base for stability.
DESCRIPTION
Buckeye Balanced Pressure Pump Proportioning Skids are designed to accurately proportion the foam
concentrate into the water stream.
The systems operate over a wide range of flows and
pressures and do not require any manual adjustment.
FEATURES
- Five proportioner options to cover a wide range of flow requirements.
- Accurate proportioning is achieved by using a diaphragm type balancing valve.
- Schedule 40 Brass pipe is standard for all interconnecting piping. Options using stainless steel are available.
- Compatible for use with all Buckeye foam concentrates.
- Name tags used for all valve identification.
- Four lifting lugs provided for easy movement of the skid.
- Pump skid supplied with manual override capabilities.
- All Buckeye skids are fully tested and shipped from the factory ready to install.
- Choice of color and finish is available for all environments using either epoxy or enamel paint. Standard paint color is red.
Technical Details
ยี่ห้อ :
BUCKEYE

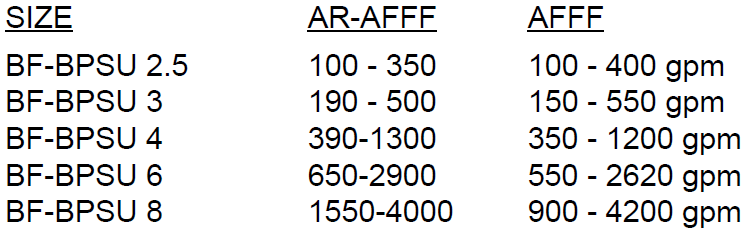

FLOW RANGE
The following table lists the nominal flow range for each size Proportioning unit. The flow rates for other foam concentrates may vary. Consult the engineering
department at Buckeye for specific applications.
