ระบบถังบรรจุน้ำยาโฟมแบบ Atmospheric Tank
DESCRIPTION
Buckeye provides Atmospheric Foam Concentrate
Storage Tanks manufactured in stainless or carbon
steel, fiberglass and polyethylene. Vertical tanks are
normally manufactured with flat bottoms and dome tops
and horizontal tanks sit on saddles.
All tanks offered by Buckeye are suitable for use with
Buckeye manufactured and supplied foam concentrates.
The fiberglass and polyethylene tanks do not have
expansion domes due to the dome shape at the top of
the tank. Inspection hatches are provided on both style
tanks. Regardless of the material of construction, a
pressure/vacuum vent must be installed. This is
normally installed on the inspection hatch on the
fiberglass or molded polyethylene tanks and on the
cover of the expansion dome on the carbon or stainless
steel tank.

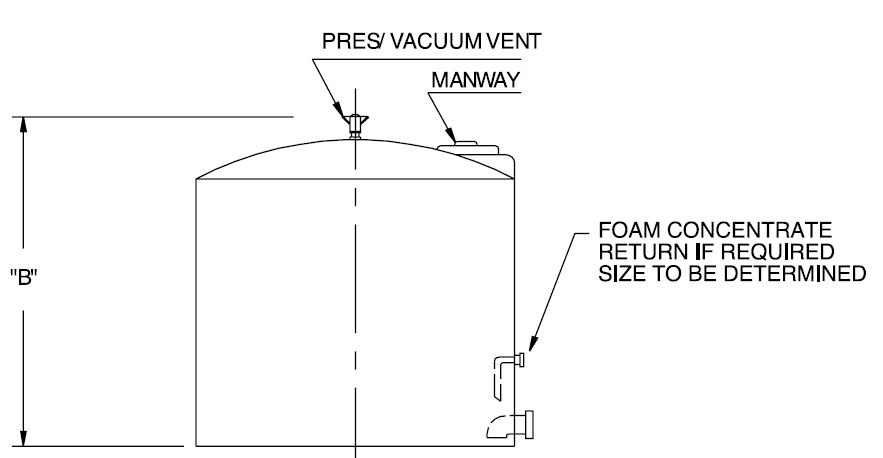

Fig. 16 shows a typical tank made from carbon steel.
INSTALLATION
If the tank has been received in a satisfactory condition, locate the tank in the desired location, level it and if
necessary, anchor to the floor. If possible, leave an area around the tank free from any walls, obstacles or electrical panels. This gives a safe working space for connecting the foam system piping to the tank.
Fig. 7 shows a typical piping arrangement of a foam concentrate pump, atmospheric tank supplying an in-line balanced pressure proportioning system.
